- Country
- Austria
- Manufacturer / Brand
- Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8348
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org

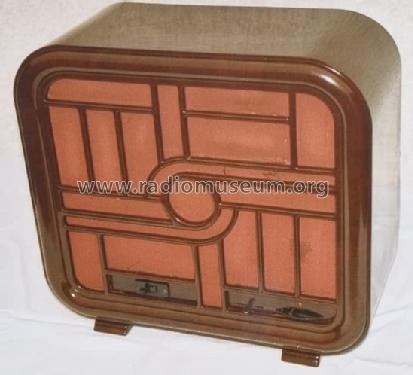

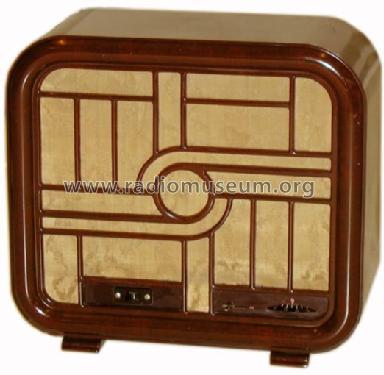

- Model: 122 - Eumig, Elektrizitäts und
- Notes
- Schirmgitter-Audion, indir.geh.Pentode (NSS42, M43, VG410)
- Price in first year of sale
- 186.00 öS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
