131

• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1931–1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8349

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• NCC4 NC4 M43 GL4/1

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 131 - Eumig, Elektrizitäts und

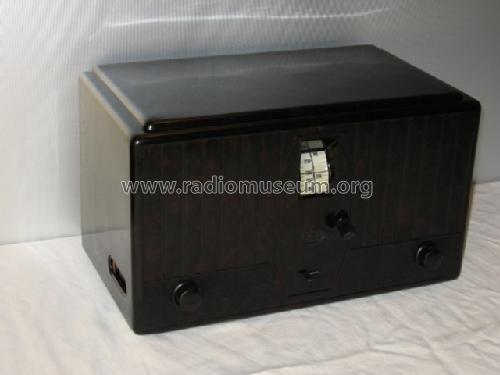

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 227 x 230 mm / 15.2 x 8.9 x 9.1 inch

• Notes
• Schirmgitter-Luxusempfänger

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

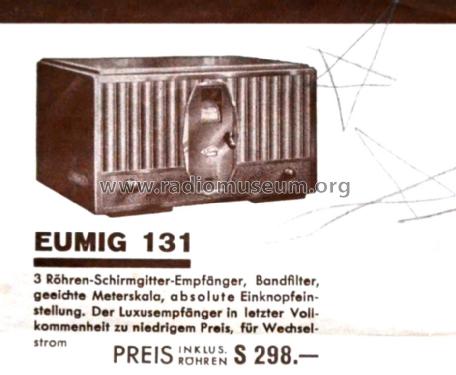

• Price in first year of sale
• 298.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Schematic / Radiokatalog Band 2, Ernst Erb
