• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8378

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• KF2 B217 C243N

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

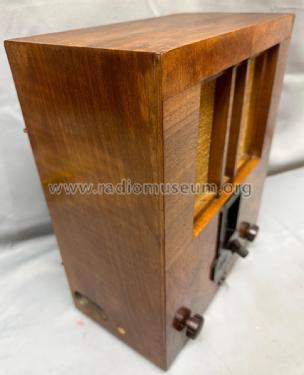

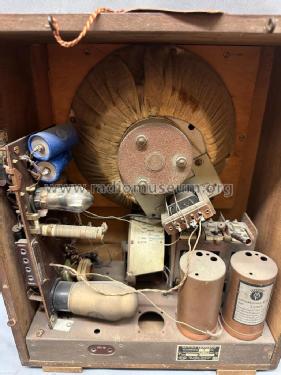

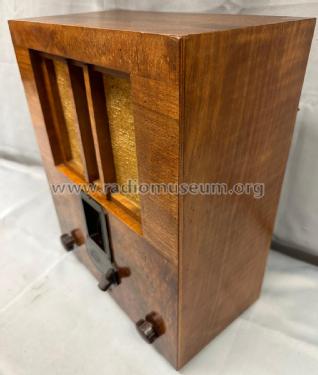

• Model: 3033 - Eumig, Elektrizitäts und

• Notes
• Schirmgitterröhren

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
