- Country
- Austria
- Manufacturer / Brand
- Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8451
restaurado
restaurado
Restaurado

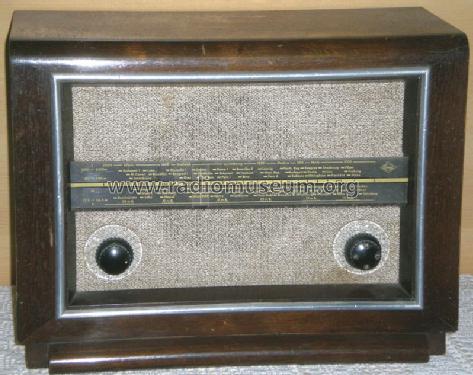

Eumig 325W
Eumig 325W (Innenansicht)

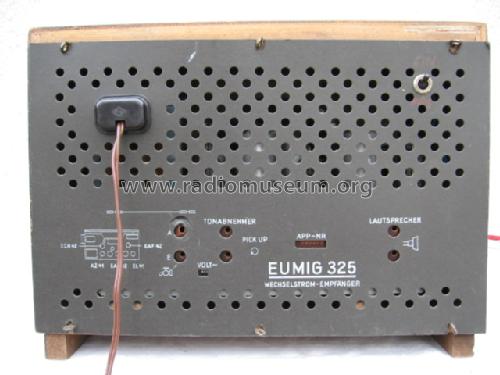

Eumig 325W (Rückansicht)
eigene Sammlung

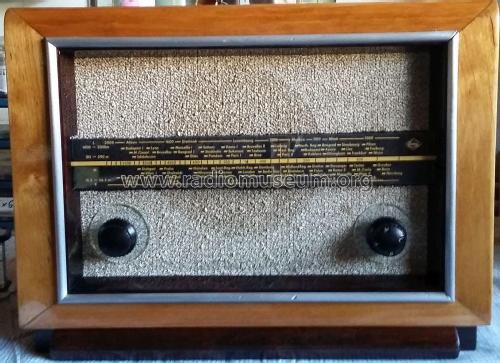

Eumig 325W - Sammlung Denoth
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 325 - Eumig, Elektrizitäts und
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 375 x 275 x 215 mm / 14.8 x 10.8 x 8.5 inch
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Price in first year of sale
- 860.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- - - Data from my own collection / Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
