• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 102191

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

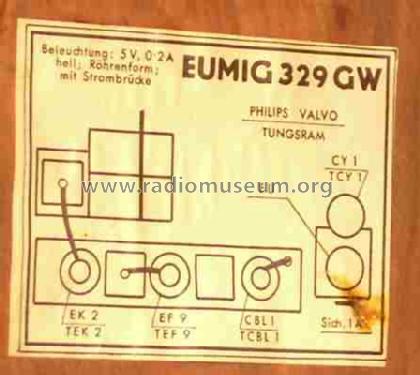

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 329GW Type 1939 [Holzgehäuse] - Eumig, Elektrizitäts und
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 435 x 330 x 230 mm / 17.1 x 13 x 9.1 inch
  • Notes

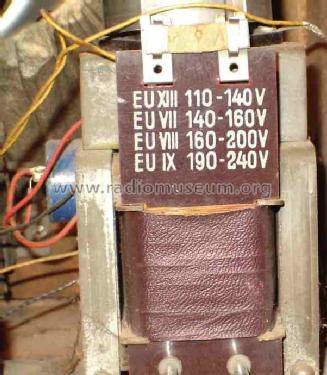

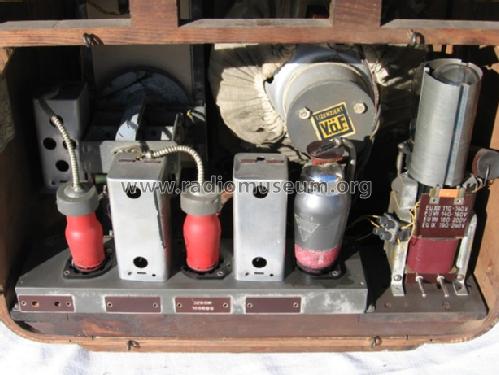

  • Regelröhre: EUXIII für 100-140 V, EUVII für 140-160 V, EUVIII für 160-200 V, EUIX für 190-240 V.
  • Circuit diagram reference
  • Lange + Schenk
  • Author
  • Model page created by Johannes Bernhauser. See "Data change" for further contributors.
