- Country
- Austria
- Manufacturer / Brand
- Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8456
Eumig 350 (GW)

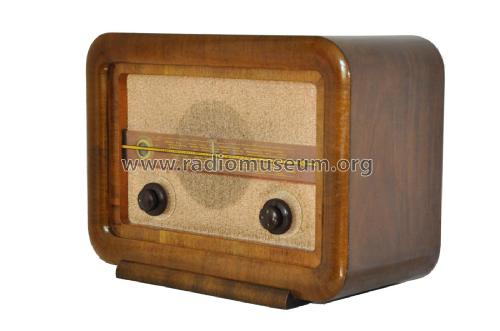

Eumig 350

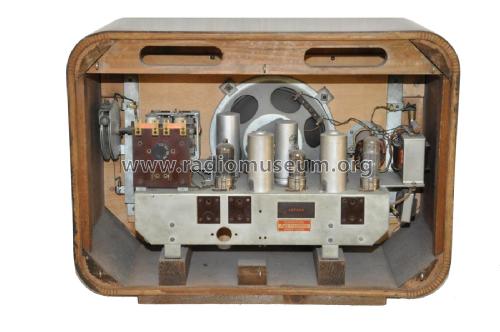

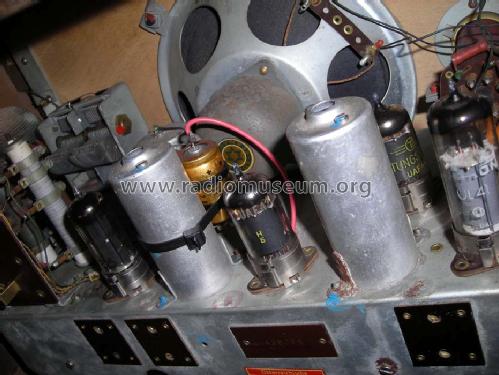

Eumig 350 (Innenansicht)

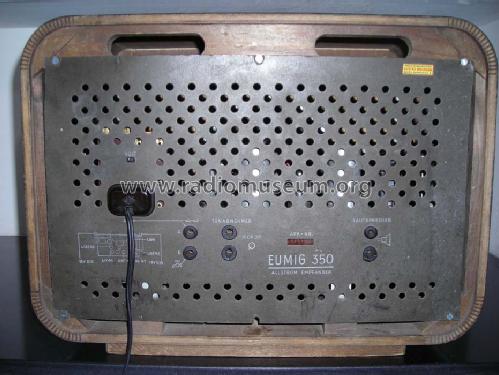

Eumig 350 (Rückansicht)
Eumig 350 U Mittelsuper Frontansicht
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 478 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 350 - Eumig, Elektrizitäts und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 330 x 220 mm / 17.7 x 13 x 8.7 inch
- Net weight (2.2 lb = 1 kg)
- 7.8 kg / 17 lb 2.9 oz (17.181 lb)
- Price in first year of sale
- 1,690.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Literature/Schematics (1)
- -- Original-techn. papers.
