• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84142

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UM4 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

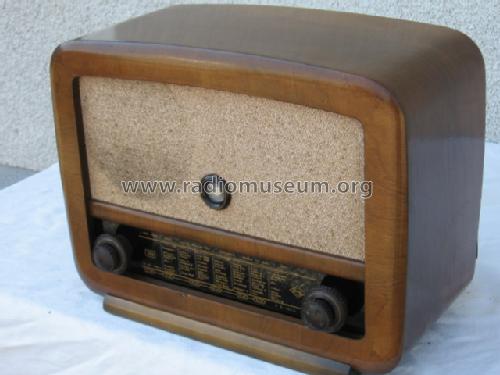

• Model: 354 - Eumig, Elektrizitäts und

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 310 x 185 mm / 16.1 x 12.2 x 7.3 inch

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 1,380.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 4/1989, S.5, erwähnt in Firmengeschichte)

• Literature/Schematics (1)
• -- Original prospect or advert (das elektron Heft 9/1952 S.299 - Werbung)

• Author
• Model page created by Alois Steiner. See "Data change" for further contributors.
