449WE Type 1939

• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8428

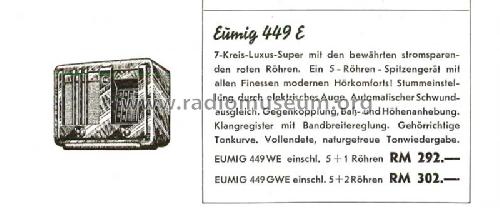

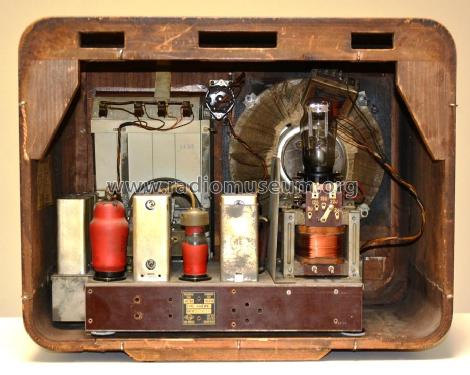

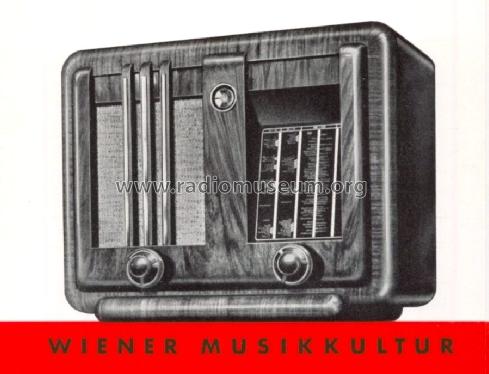

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK3 EBF2 EF6 EL3 EM1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 449WE Type 1939 - Eumig, Elektrizitäts und

• Dimensions (WHD)
• 490 x 390 x 270 mm / 19.3 x 15.4 x 10.6 inch

• Notes
• auch ZF 477

• Net weight (2.2 lb = 1 kg)
• 12.8 kg / 28 lb 3.1 oz (28.194 lb)

• Price in first year of sale
• 292.00 RM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Other Models

• Here you find 259 models, 229 with images and 176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
