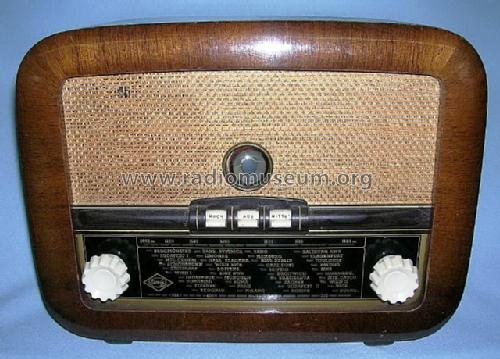

Bel Ami 355

• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26822

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UBC41 UL41 UY41 UM4

• Main principle
• Superheterodyne (common); ZF/IF 478 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110, 125, 150, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bel Ami 355 - Eumig, Elektrizitäts und

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 235 x 150 mm / 11.8 x 9.3 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 998.00 S

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
