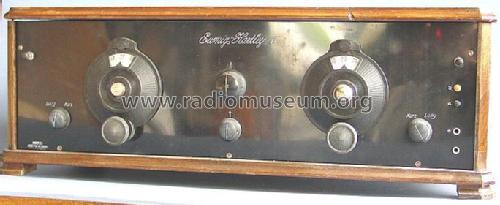

Hartley IV 5475/330

• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8336

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RE074 RE084 RE074 RE184

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hartley IV 5475/330 - Eumig, Elektrizitäts und

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 610 x 210 x 260 mm / 24 x 8.3 x 10.2 inch

• Notes
• auch als Bausatz

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Price in first year of sale
• 420.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Mentioned in
• Museums Bote, Österr. (Heft 4/1989, S.2, erwähnt in Firmengeschichte)
