Phono Eumig 3D 386W

• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30957

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10400 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Phono Eumig 3D 386W - Eumig, Elektrizitäts und

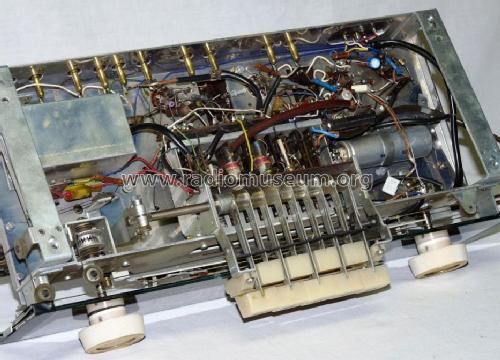

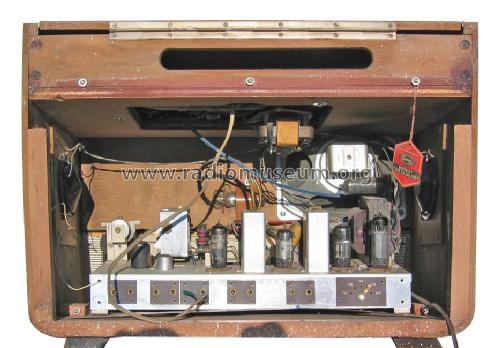

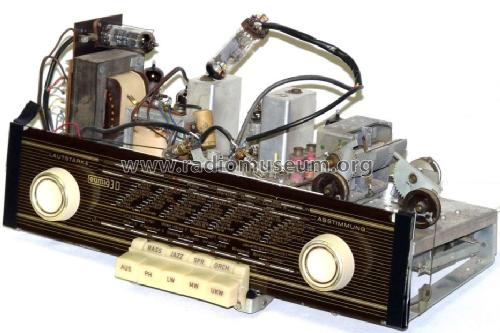

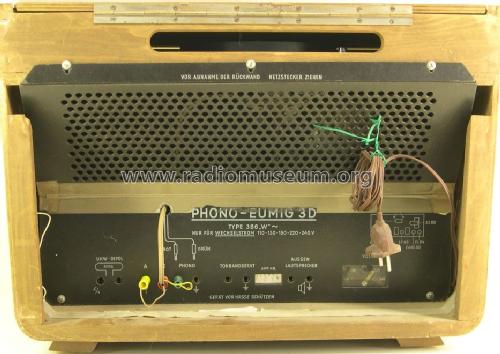

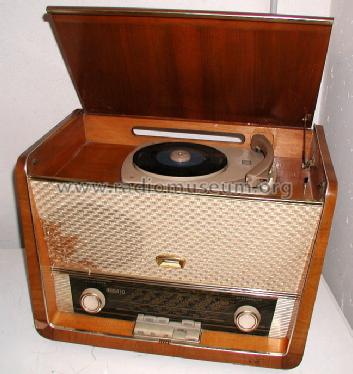

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 350 x 390 mm / 20.1 x 13.8 x 15.4 inch

• Notes

• 3D-Raumklang durch 2 seitliche Piezo-Hochton-Lautsprecher.

  Mit Plattenspieler Dual 295 oder Dual 300.

  Siehe auch: Basismodell Eumig 3D 385W

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 2,490.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (4)
• -- Schematic

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
