Générateur Modulé 412
Eurelec - Institut Européen d'Électronique; Puteaux, Paris, Dijon
- Country
- France
- Manufacturer / Brand
- Eurelec - Institut Européen d'Électronique; Puteaux, Paris, Dijon
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 112343
F_EURELEC_Générateur modulé 412

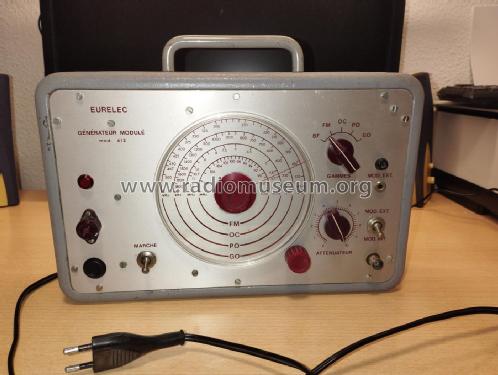

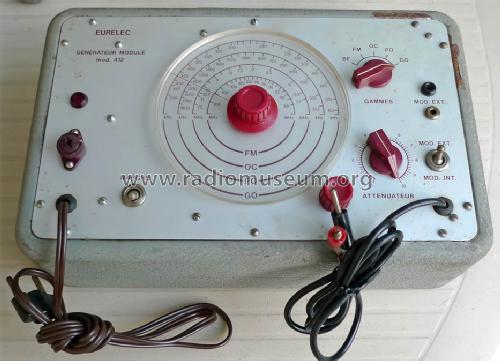

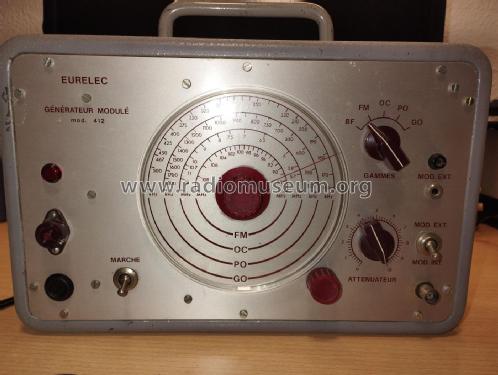

Générateur HF modulé mod 412 (J.M)
Vue intérieure, blindage enlevé

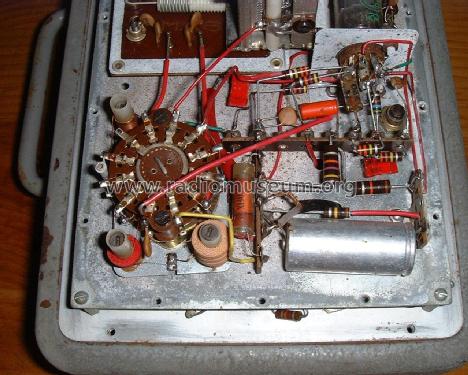

Détails oscillateur et commutateur de gammes
Foto de Francisco Martins

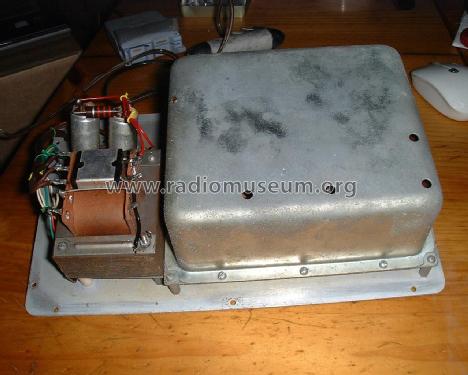

Vue interne de l'appareil
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- ECF80
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 125; 160; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Générateur Modulé 412 - Eurelec - Institut Européen d'
- Shape
- Tablemodel, with any shape - general.
- Notes
- RF generator, four ranges LW, MW, SW ~5,5 to 12 MHz and VHF broadcast radio band, intern or extern modulation.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
