- Country
- France
- Manufacturer / Brand
- Evernice (marque), Burel Frères et J. Delaître; Paris
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278577
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 200; 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

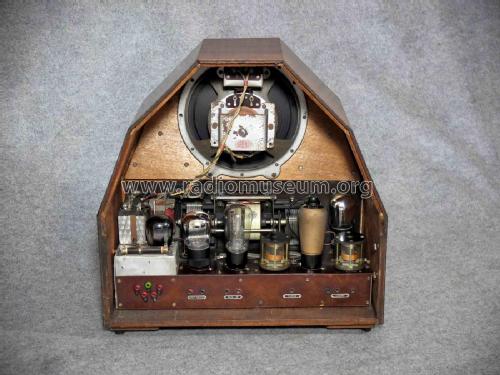

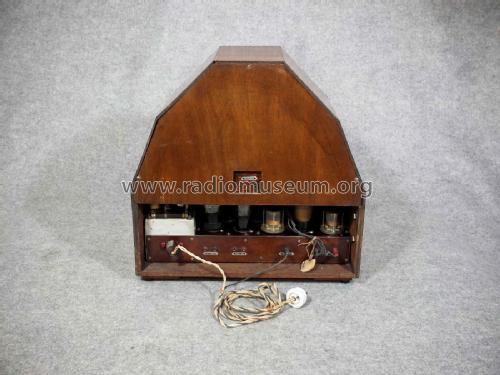

- Model: Bloc ES432 - Evernice marque, Burel Frères
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 410 x 460 x 240 mm / 16.1 x 18.1 x 9.4 inch
- Notes
-
Récepteur superhétérodyne à 4 lampes (1 bigrille, 1 MF à écran, 1 détectrice, 1 BF penthode) et 1 valve. Prise pick-up.
- Price in first year of sale
- 2,650.00 FRF
- Mentioned in

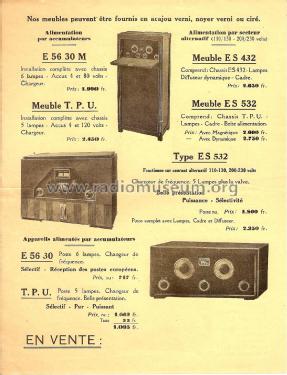

- -- Original prospect or advert
