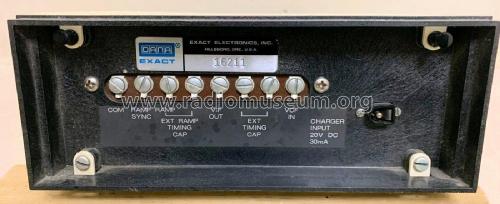

Function Generator 195

Exact Electronics Inc.; Hillsboro (OR)

Data
Forum
Pictures
Collections

  • Year
  • 1974
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 337928

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Batteries / addl. power jack / 20 or 1 x 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Function Generator 195 - Exact Electronics Inc.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 7.375 x 2.875 x 8.5 inch / 187 x 73 x 216 mm
  • Notes

  • Output waveforms: Sinusoidal, square, triangular with frequency range from 2 Hz to 200 kHz.
    Output levels: I Vrms adjustable for sine waves; 3 Vp fixed for square waves (TTL level); 1 Vpp fixed for triangular waves.
    Possibility of controlling the generator frequency with an external signal.
    Linear and logarithmic automatic sweep.

  • Net weight (2.2 lb = 1 kg)
  • 2 lb (2 lb 0 oz) / 0.908 kg
  • Price in first year of sale
  • 149.50 USD
  • Mentioned in
  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 6, June 1975.)
  • Literature/Schematics (1)
  • Electronic Technician, Aug. 1974, pg. 47, "New Products" Exact Model 195.
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
