58-T-2 Ch= 58
Fairbanks, Morse & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fairbanks, Morse & Co.; Chicago (IL)
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39888
-
- alternative name: FMC
- Brand: Welco
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

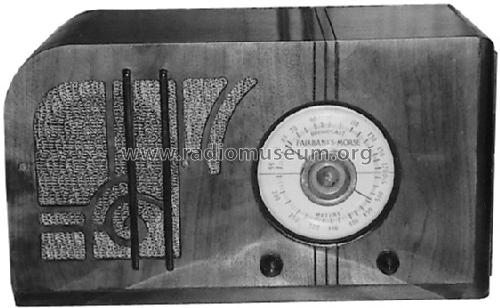

- Model: 58-T-2 Ch= 58 - Fairbanks, Morse & Co.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 13.5 x 18 x 9.25 inch / 343 x 457 x 235 mm
- Notes
-
The Fairbanks Morse 58-T-2 is an AC operated, 5 tube BC, Police and SW band receiver. Uses chassis 58. Has AGC and 2 stage audio circuit. The three bands cover a frequency tuning range of 540 to 23000kHz. Has 5.5" tuning dial, AVC and a tuning ratio of 8:1.
NOTE: 58 is the chassis number and NOT the model number.
The following models use the same chassis:
Model Number Chassis Cabinet 58-C-1 58 Console 58-T-1 58 Table Model 58-T-2 58 Table Model NOTE: The following references have incorrect information:
1. Machine Age to Jet Age (pg 233) - Has incorrect picture for model 58-T-2, with picture shown actually being Fairbanks Morse model 57-T-0.
2. Machine Age to Jet Age Vol II (pg 125) - Has incorrect picture for model 58-T-2, with picture shown being an unknown Fairbanks Morse model. Cabinet similar to 58-T-1 cabinet except has 2 knobs instead of 4. Dial is similar to 57-T-0 except has 2 knobs instead of 3.
3. Machine Age to Jet Age Vol II (pg 125) - Model listed as model 58 is an incomplete model number and is actually model 58-T-2.
4. Cathedral & Tombstone Radios (pg 110) - Model listed as model 58 is an incomplete model number and is actually model 58-T-2. Also incorrectly lists having 2 bands, but model 58-T-2 actually has 3 bands.
5. Tabletop Radios Vol I (pg 81) - Has incorrect picture for model 58-T-2, with picture shown actually being Fairbanks Morse model 57-T-0. Description under picture states 2 bands, which is also correct for model 57-T-0 (Model 58-T-2 has 3 bands).
- Price in first year of sale
- 44.95 $
- External source of data
- Ernst Erb
- Source of data
- Table Top Radios Vol. 1 Stein 98
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Fairbanks-Morse Folder RA 309 for 1937)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 8 = 1937 and before (Fairbanks Morse section, pages 8-23, 8-24)
- Literature/Schematics (2)
- Radio Today (and Television) (Sept 1936 pg 51, March 1937 pg 49)
- Literature/Schematics (3)
- Machine Age to Jet Age (Pg 233, also Machine Age to Jet Age Vol II, pg 125 and Cathedral & Tombstone Radios pg 110)
- Literature/Schematics (4)
- Gernsback Official Radio Service Manual (Volume 7, page 185)
