• Country
• France

• Manufacturer / Brand
• Familial Radio, G. Dubois; Fourmies, Paris, Glageon

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68578

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 136 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240; 260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

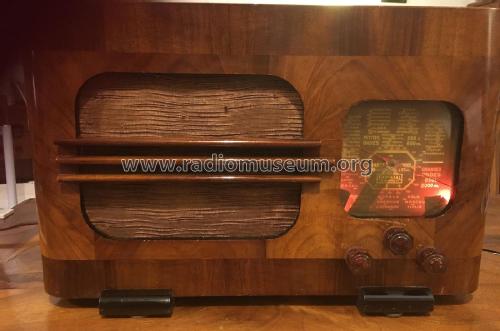

• Model: 511 - Familial Radio, G. Dubois;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 260 x 260 mm / 16.1 x 10.2 x 10.2 inch

• Notes

• 3 gammes d'ondes de 20 à 2000 m.

• Price in first year of sale
• 875.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Source of data
• Schémathèque Toute la Radio (STR)

• Mentioned in
• -- Original prospect or advert

• Other Models

• Here you find 115 models, 87 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
