• Country
• France

• Manufacturer / Brand
• Fanfare, Tom-Tit, Transivox; Paris

• Year
• 1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 319824

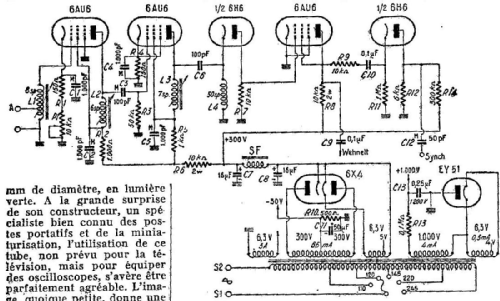

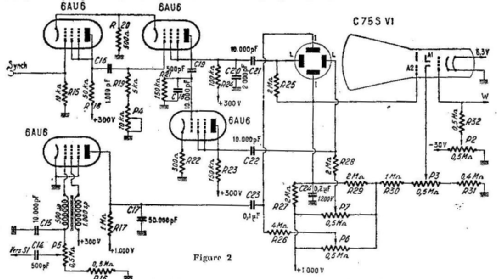

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6AU6 6AU6 6H6 6AU6 EY51 6AU6 6AU6 6AU6 6AU6 6X4 C75S

• Main principle
• TRF with diode detector

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 134; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Videophone - Fanfare, Tom-Tit, Transivox;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 120 x 150 x 400 mm / 4.7 x 5.9 x 15.7 inch

• Notes

• Récepteur de télévision à tube de 75mm, montage en amplification directe.

  L'appareil ne reçoit que des images du norme française 441 lignes, diffusé par l'émmeteur tour Eiffel sur 42 MHz (image) et 46 MHz (son).

  Prix complet du kit.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 18,000.00 FRF

• Mentioned in

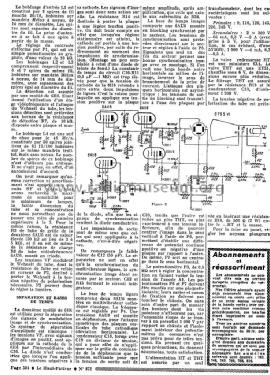

• Le Haut-Parleur (No 872, 29 juin 1950)

• Author
• Model page created by Dominique Mougenot. See "Data change" for further contributors.
