• Country
• Finland

• Manufacturer / Brand
• Fazer, Helsinki

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286759

• • alternative name: Musiikki-Fazer Oy

• Number of Tubes
• 4

• Valves / Tubes
• DK21 DF21 DAC21 DL21

• Main principle
• Superheterodyne (common); ZF/IF 485 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 1,5 & 95 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

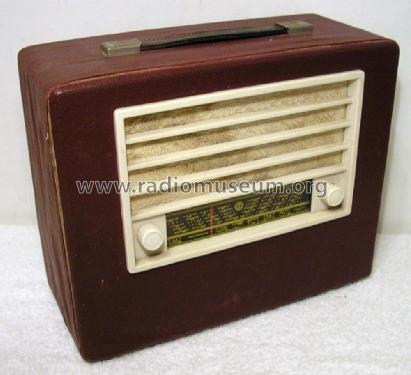

• Model: 495 M - Fazer, Helsinki

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 322 x 265 x 145 mm / 12.7 x 10.4 x 5.7 inch

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.

• Other Models

• Here you find 7 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
