TS5 s-mètres à gauche
Filson; Paris
- Country
- France
- Manufacturer / Brand
- Filson; Paris
- Year
- 1969 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 325224
- Number of Transistors
- 12
- Semiconductors
- SF8636 SF8636 AF124 BC108 µA703 µA703 µA703 µA703 BF224 BC148 BC178 or. BC158 or. BC192 unknown_tr AA119 AA112 BA102 Si-Br-Gl
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 14 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: TS5 [s-mètres à gauche] - Filson; Paris
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 390 x 240 x 130 mm / 15.4 x 9.4 x 5.1 inch
- Notes
-

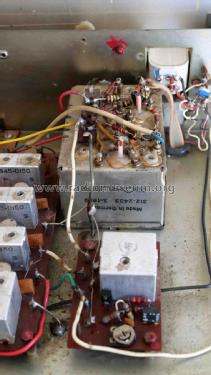

Après le TS4 monophonique, Filson commercialise le tuner TS5 stéréo dont la qualité est assurée par des modules Görler (tête HF blindée à FET - 4 cages) suivants:

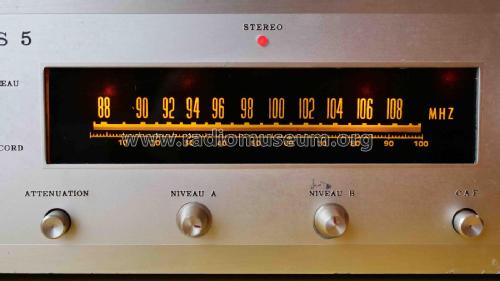

Deux s-mètres, Niveau et Accord, situés à la gauche du cadran.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 1,100.00 francs
- Author
- Model page created by Jacques Ollion. See "Data change" for further contributors.
