• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222610

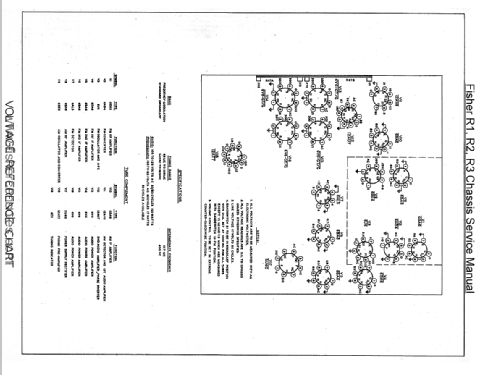

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6BA6 6BA6 6BA6 6BA6 6BA6 6BA6 6BE6 6AB4 6J6 12AV6 12AU7 6AL5 5U4 12AT7 6E5 6V6GT 6V6GT 6V6GT 6V6GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 15 inch = 38.1 cm

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronet Ch= R1 - Fisher Radio; New York NY

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 41 x 38 x 20 inch / 1041 x 965 x 508 mm

• Notes

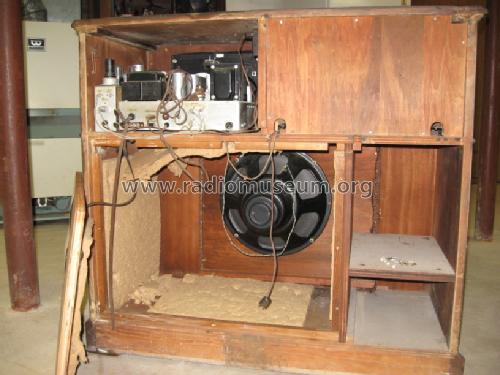

• This is an early Fisher radio phonograph console. It comes with a dynamic range expander on a separate chassis that contains 4 tubes. The record changer was manufactured by Webster.

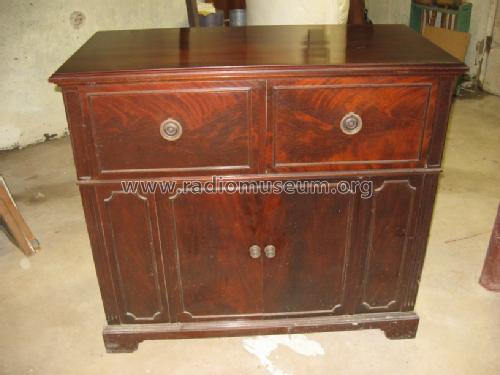

  This model came in a choice of different cabinets. This cabinet is the "Georgian" version which was imported from the UK.

  The dynamic range expander contains 4 tubes: 6SL7, 6SK7, 6H6, and 5Y3. It is based on a design by the E.H. Scott Corporation.

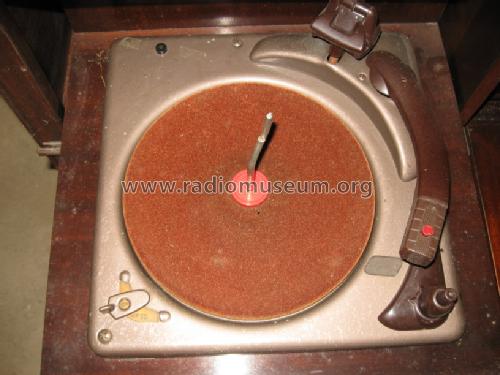

  The record changer is a Webster model 357.

• Net weight (2.2 lb = 1 kg)
• 125 lb 0 oz (125 lb) / 56.750 kg

• Price in first year of sale
• 600.00 US

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Jon Kummer. See "Data change" for further contributors.
