Electra 906
Focal JMlab; Saint-Étienne
- Country
- France
- Manufacturer / Brand
- Focal JMlab; Saint-Étienne
- Year
- 2002/2003
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 307258
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 90 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

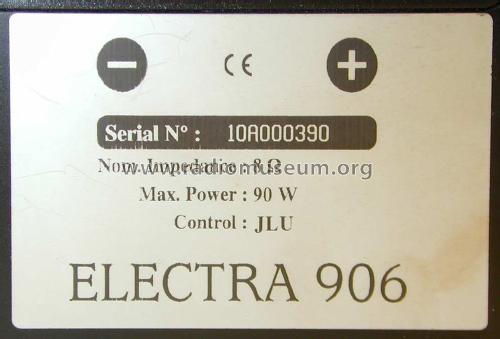

- Model: Electra 906 - Focal JMlab; Saint-Étienne
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 315 x 218 mm / 16.5 x 12.4 x 8.6 inch
- Notes
-
- Lautsprecherbestückung:
1 x 165 mm Sandwich "W" mit 32 mm Schwingspule
1 x 25 mm tioxid beschichtete Invers-Hochtonkalotte, 20 mm Schwingspule - Frequenzgang: (+/-3 dB) 50 Hz - 23 kHz
- Wirkungsgrad: (2,8V/1m) 90 dB
- Nennimpedanz: (EN 60065) 8 Ohm
- Impedanz Mimimum: 4,6 Ohm
- Trennfrequenz: 2,500 Hz
- Maximale Belastbarkeit: 90 W
- Empf. Verstärkerleistung: 25 - 75 W
- Lautsprecherabdeckung: akustischer Bespannstoff, schwarz oder grau
- Lautsprecherbestückung:
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Mentioned in
- Stereo 4/2002 - Audio 4 2002 und 9/2003
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
