• Country
• France

• Manufacturer / Brand
• Fornett, Buisson, Le Téléphone Pratique; Paris, Strasbourg, Romainville

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120160

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

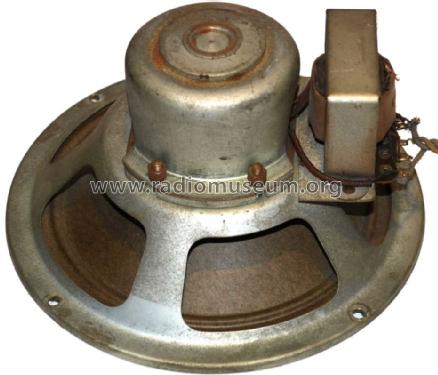

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Inconnu - Unknown 2 - Fornett, Buisson, Le Téléphone

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 395 x 490 x 270 mm / 15.6 x 19.3 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.

• Other Models

• Here you find 62 models, 60 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fornett, Buisson, Le Téléphone Pratique; Paris, Strasbourg, Romainville
