- Country
- France
- Manufacturer / Brand
- Fornett, Buisson, Le Téléphone Pratique; Paris, Strasbourg, Romainville
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68571

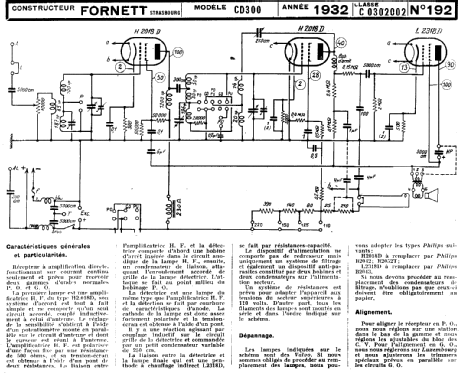

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Direct Current supply (DC) / 110; 125; 150; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: CD300 - Fornett, Buisson, Le Téléphone
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 192)
