• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Fountain Electronic Industries Ltd.; Auckland

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334079

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF89 ECH81 EF89 EBF89 EM84 EL84

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org
• Model: Flairline Mk1 - Fountain Electronic Industries

• Shape
• Tablemodel, with any shape - general.

• Notes

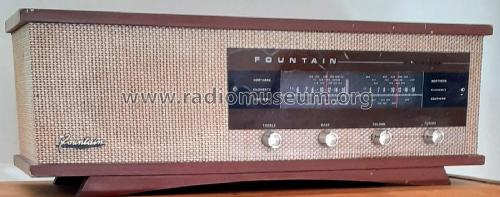

• FOUNTAIN "FLAIRLINE"

  Broadcast, 6 valve, mains operated. Features include tuned RF stage, separate bass and treble controls, large 6x9L elliptical Rola speaker, magic eye tuning. Provision for pick-up and extension speaker. RETAIL $69.75



• Price in first year of sale
• 69.75 NZ $

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 12 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fountain Electronic Industries Ltd.; Auckland
