Fata Morgana
Füllgrabe & Co., August; Kassel
- Country
- Germany
- Manufacturer / Brand
- Füllgrabe & Co., August; Kassel
- Year
- 1925
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 14603
-
- Brand: Fata Morgana
eBay-VK: heike_13
eBay-VK: heike_13
eBay-VK: heike_13

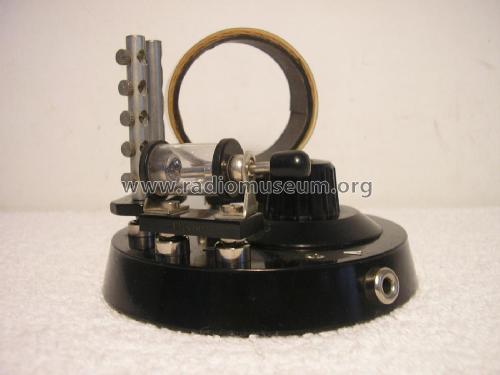

Fata Morgana Detektor

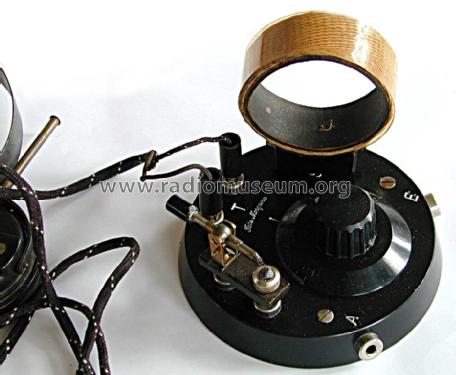

Fata Morgana (Innenansicht)
Fata Morgana

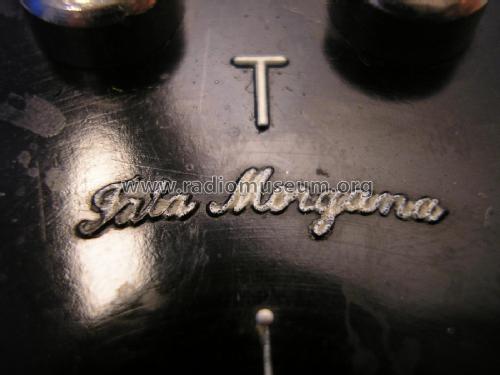

Fata Morgana (Aufschrift)
Fata Morgana
Fata Morgana Detektor
Fata Morgana Detektor
Der sächsische Funk - Nov. 1925
- Main principle
- Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Fata Morgana - Füllgrabe & Co., August;
- Dimensions (WHD)
- 105 x 42 x 105 mm / 4.1 x 1.7 x 4.1 inch
- Notes
- Runder Detektorapparat mit Steckspule und Steckdetektor.
Gewicht ohne Spule, Detektor und Hörer.
- Net weight (2.2 lb = 1 kg)
- 0.170 kg / 0 lb 6 oz (0.374 lb)
- Price in first year of sale
- 14.50 Pengő
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Historische Radios Band V (17B)
- Literature/Schematics (1)
- Der sächsische Funk - Nov. 1925
- Literature/Schematics (4)
- Loebenstein Rádió Árjegyzék, Budapest ~1927
- Picture reference
- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
