Lößnitz (Lössnitz) 4U69

• Country
• Germany

• Manufacturer / Brand
• Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16502

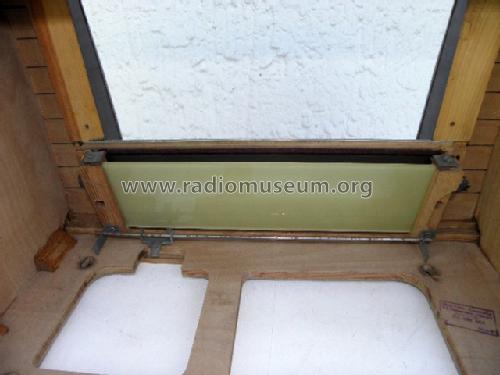

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 or UEL51 UY11 or

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110, 127, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Lößnitz 4U69 - Funkwerk Dresden, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 330 x 232 mm / 18.5 x 13 x 9.1 inch

• Notes
• [555309]. Chassis aus Bakelit. Kurzwellenlupe. Auch in Stern-Radio Stassfurt als 4U69 hauptsächlich für Export gefertigt.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Price in first year of sale
• 239.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funk-Technik (FT) (5309)

• Literature/Schematics (1)
• Funkverlag Hein, Service-DVD

• Literature/Schematics (2)
• Gebrauchswaren-Katalog 1954

• Literature/Schematics (3)
• -- Schematic (Rádióvevõkészülékek Kapcsolása - Kádár G. - 1963)
