• Country
• Germany

• Manufacturer / Brand
• Funkwerk Halle (FWH), VEB; Halle

• Year
• 1968 ?

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 219056

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• PCC88 PCF82

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

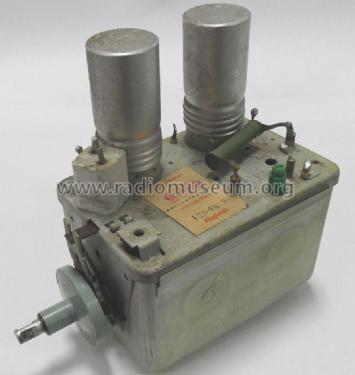

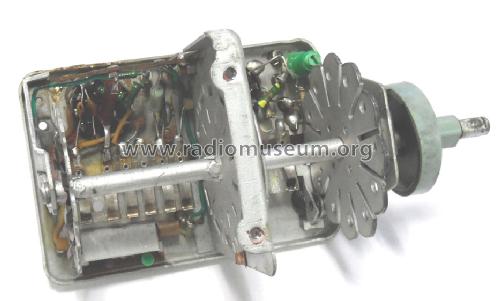

• Model: Trommelkanalwähler 4 1195.060.00001 - Funkwerk Halle FWH, VEB; Halle

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 70 x 125 x 177 mm / 2.8 x 4.9 x 7 inch

• Notes
• Trommelkanalwähler mit 12 Schalterstellungen und selektivem Eingangskreis mit nachfolgender regelbarer Kaskodeschaltung (PCC88). Bereiche: Band I und III (VHF Kanal 2-4 und 5-12). Verwendet in der Stella - Ines Serie. Antenneneingang 240 Ohm symmetrisch.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Author
• Model page created by Volker MARTIN. See "Data change" for further contributors.
