Apart 306

• Country
• Germany

• Manufacturer / Brand
• Funkwerk Zittau, VEB, RFT, - vorm. Dr. G. Seibt Nachfolger, (Marke: Ziphona); Zittau-Olbersdorf

• Year
• 1968 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 83703

• • alternative name: Radio- und Metallw.; Zittau

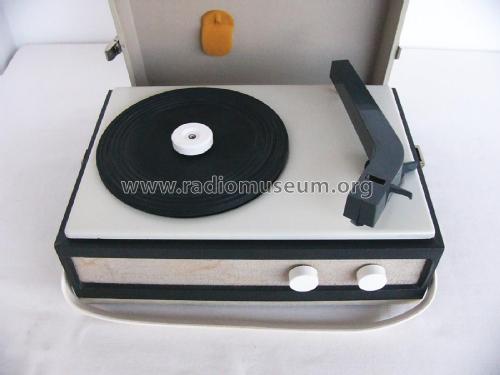

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Apart 306 - Funkwerk Zittau, VEB, RFT, -

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 140 x 220 mm / 12.6 x 5.5 x 8.7 inch

• Notes

• Monoverstärker 1W; Ovallautsprecher-Typ L2160 PO/A in Gerätefront eingebaut; 16/33/45/78 UpM; Klangregler; Stereo-System KSS0163, auswechselbar gegen Monosystem KSM0161N; Laufwerk Typ Apart006 eingebaut.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Price in first year of sale
• 365.00 DM

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
