• Country
• France

• Manufacturer / Brand
• Gaillard; Paris

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119686

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1T4 1S5 3S4

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 240 / 2 x 1,5 & 67 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Battery Select - Gaillard; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 190 x 110 mm / 11 x 7.5 x 4.3 inch

• Notes
• Alimentation en portable avec 2 piles 1.5V et une pile 67V , bois gainé.

• Literature/Schematics (1)

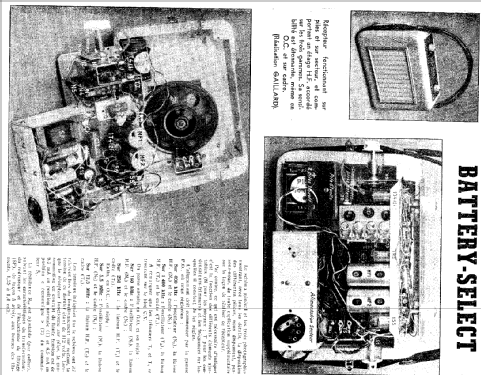

• Revue Radio Constructeur et Dépanneur mai 1955

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
