Compact Cadre
Gaillard; Paris
- Country
- France
- Manufacturer / Brand
- Gaillard; Paris
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285670

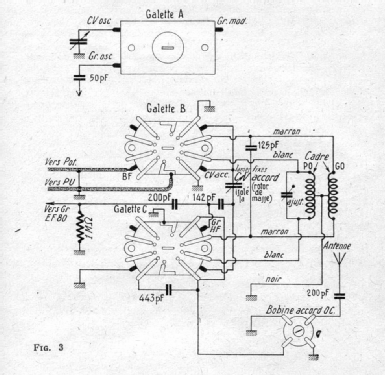

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 145; 220; 245 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Compact Cadre - Gaillard; Paris
- Shape
- Tablemodel, with any shape - general.
- Price in first year of sale
- 20,900.00 F fr
- Mentioned in
- Le Haut-Parleur (N° 952 de février 1954)
- Author
- Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.
