Météor FM 107
Gaillard; Paris
- Country
- France
- Manufacturer / Brand
- Gaillard; Paris
- Year
- 1955/1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146880
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 480/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 245 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 5.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Météor FM 107 - Gaillard; Paris
- Shape

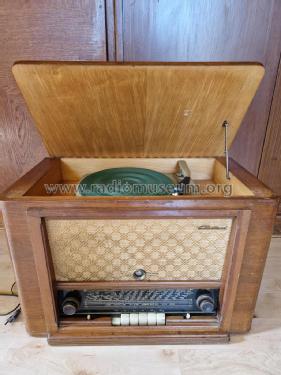

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 650 x 450 x 375 mm / 25.6 x 17.7 x 14.8 inch
- Notes
-

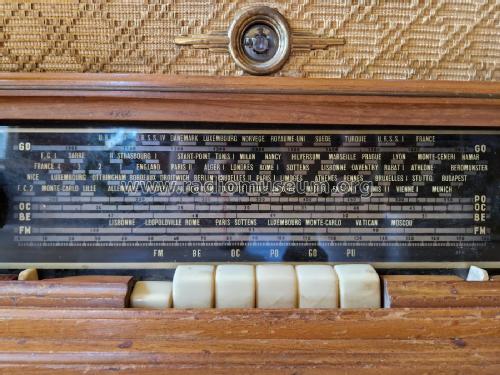

Oeil magique, clavier 6 touches, cadre incorporé.
- UKW Baustein 2x 12AT7, 87-101 MHz
- Lautsprecher 1x oval 21 x 16 cm, 1 x 10 cm, 1x 8 cm Hochton
- Plattenspieler Lenco F50-8, 4 Geschwindigkeiten 16, 33 1/3, 45, 78 Upm

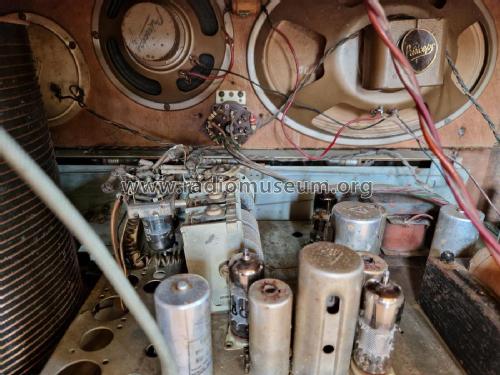

- Chassis und Rückseite tragen keine weiteren Bezeichnungen.
- Net weight (2.2 lb = 1 kg)
- 21 kg / 46 lb 4.1 oz (46.256 lb)
- Price in first year of sale
- 28,250.00 FF
- Mentioned in
- Radio Plans (électronique loisirs, Applications) (N° 108 page 39 et suivante + page centrale)
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur 1957
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
