• Country
• Great Britain (UK)

• Manufacturer / Brand
• Gambrell Bros.Ltd., London

• Year
• 1924 ?

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 133501

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Main principle
• Radio Frequency Amplification only

• Tuned circuits
• 2 AM circuit(s)

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

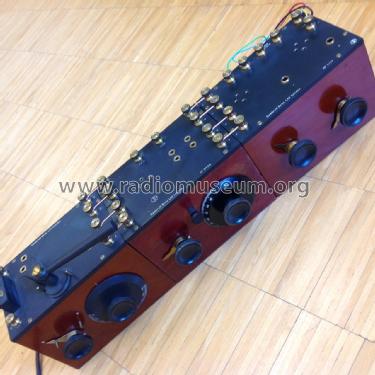

• Model: Unit No.3 H.F. Unit, 6024 - Gambrell Bros.Ltd., London

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 170 x 235 x 158 mm / 6.7 x 9.3 x 6.2 inch

• Notes
• Tuned RF amplifier.
  2 Plug-in Coils (double plug). 2 variable capacitors (250 pF and 50 pF).

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Modern Wireless,Dez. 1924

• Author
• Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
