• Country
• France

• Manufacturer / Brand
• Gaumont, Radio-Seg; Paris

• Year
• 1926 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 227963

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

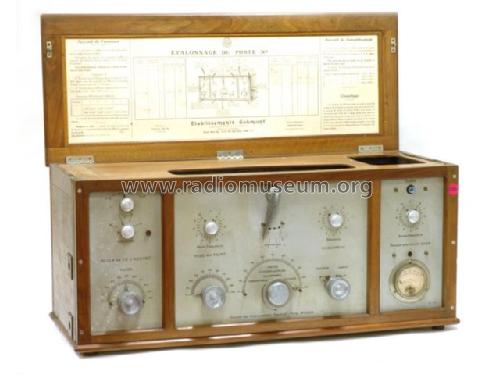

• Model: Radio-SEG Type 4 - Gaumont, Radio-Seg; Paris

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 670 x 300 x 260 mm / 26.4 x 11.8 x 10.2 inch

• Notes

• Réglage semi-automatique par un seul bouton commandant les deux circuits d'accord haute-fréquence.

• Net weight (2.2 lb = 1 kg)
• 15.3 kg / 33 lb 11.2 oz (33.7 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• La Nature, 1926 2e, p.148

• Author
• Model page created by a member from F. See "Data change" for further contributors.

• Other Models

• Here you find 43 models, 38 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
