• Country
• Italy

• Manufacturer / Brand
• GBC; Milano

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222676

• • alternative name: Gian Bruto Castelfranchi

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EF89 ECL86

• Number of Transistors

• Semiconductors
• OA79 OA79 OA79 BY123

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

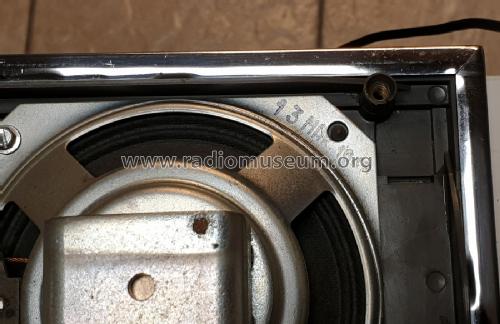

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Aramis FM/2A - GBC; Milano

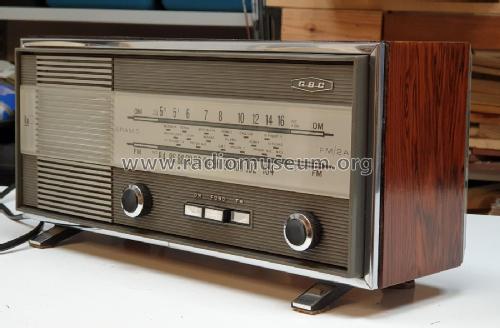

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 330 x 150 x 120 mm / 13 x 5.9 x 4.7 inch

• Notes

• Ponte raddrizzatore WL04. Levetta posteriore per selezione FM-TV

  Questo modello, al posto della classica valvola rivelatrice, adopera tre diodi: OA79.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.
