- Country
- France
- Manufacturer / Brand
- GBG (G.B.G) - Éts. Gauban, Boissonet, Gourhant; Courbevoie
- Year
- 1960
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 181490
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 9.6 & 8.4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

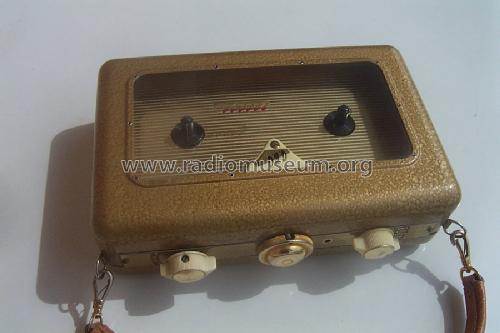

- Model: Memostor - GBG G.B.G - Éts. Gauban,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 220 x 140 x 60 mm / 8.7 x 5.5 x 2.4 inch
- Notes
- 2 pistes, vitesse 9.5cm/s, diamètre des bobines 10cm, 1 moteur, entièrement télécommandé par le micro. NiCd rechargeable batteries.
- Net weight (2.2 lb = 1 kg)
- 2.1 kg / 4 lb 10 oz (4.626 lb)
- Price in first year of sale
- 1,500.00 NF
- Author
- Model page created by Christian Berthier. See "Data change" for further contributors.
