- Country
- France
- Manufacturer / Brand
- Général-Radio; Dijon
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122767
-
- alternative name: General-Radio
eaby.fr #223054639333 seller deflanne
eaby.fr #223054639333 seller deflanne
Dépliant 1958
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

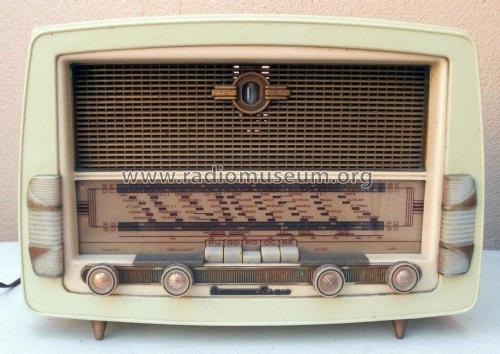

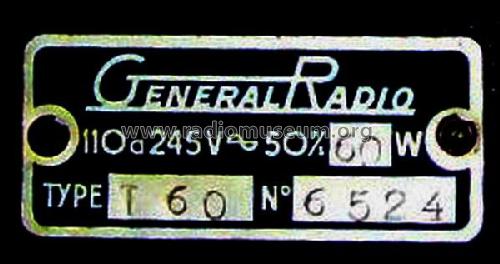

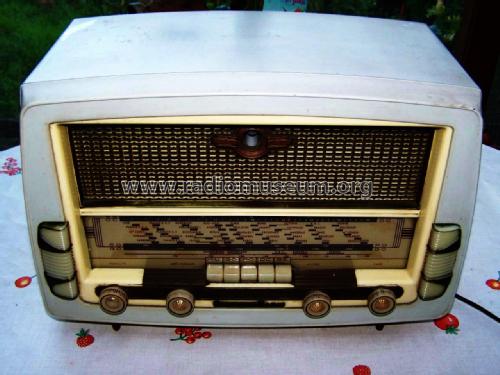

- Model: T60 - Général-Radio; Dijon
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 390 x 290 x 200 mm / 15.4 x 11.4 x 7.9 inch
- Notes
-
4 gammes d'ondes dont 1 bande étalée (BE). Cadre à air blindé incorporé. Clavier 5 touches. Commutateur antenne-cadre sur le dos. Prise pick-up et HP supplémentaire.

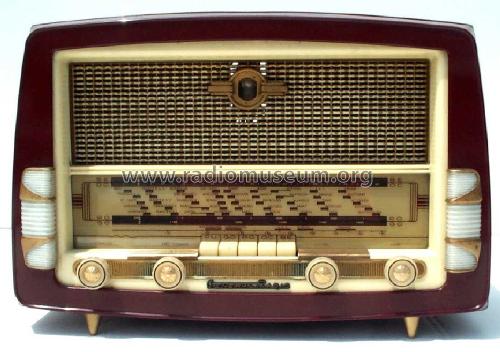

Coffret polystyrène ivoire ou bordeaux.
Prix sans supplément TVA. Supplément pour gamme chalutier 1500 Fr.
Interne Rahmen-Peilantenne auf Zylinder D= 110 mm x H= 160 mm; Anschluß und Umschalter für ext. Antenne, Plattenspieler und zusätzlichen Lautsprecher. Farbe Bordeaux (auch in Beige und ev. weitere?). Leistungsaufnahme 60 Watt.
- Price in first year of sale
- 25,980.00 FRF
- Literature/Schematics (1)
- - - Manufacturers Literature (Tarif confidentiel provisoire 1957-1958)
- Literature/Schematics (2)
- -- Original prospect or advert (Gamme 1958)
- Author
- Model page created by a member from CH. See "Data change" for further contributors.
- Other Models
-
Here you find 75 models, 68 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
