Drehkondensator C.V. 53 (CV53)
Gesellschaft für drahtlose Telegraphie System Prof. Braun und Siemens & Halske mbH; Berlin
- Country
- Germany
- Manufacturer / Brand
- Gesellschaft für drahtlose Telegraphie System Prof. Braun und Siemens & Halske mbH; Berlin
- Year
- 1916 ?
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 226612
- Main principle
- none
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Drehkondensator C.V. 53 - Gesellschaft für drahtlose
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 120 x 135 x 160 mm / 4.7 x 5.3 x 6.3 inch
- Notes
-

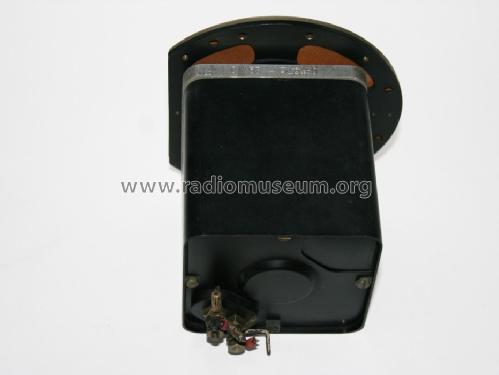

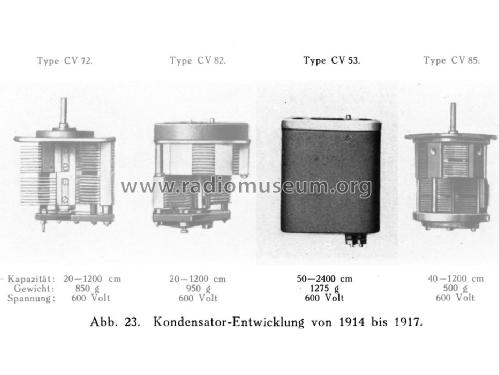

Drehkondensator von 2400 cm (2,7 nF) Kapazität. Gewichtsangabe und Größe mit Skala und Drehknopf bzw. Achse. Gewicht und Abmessungen ohne Zubehör: 90 x 90 x 100mm, 1,3kg. Versiegelter Metallbecher.

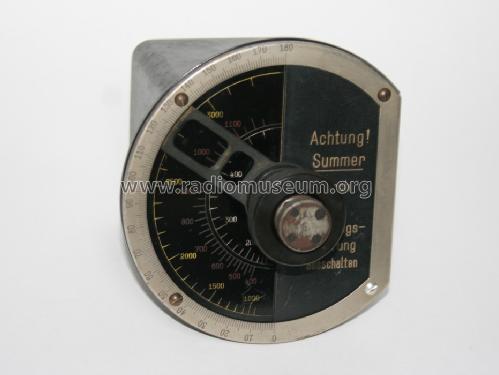

Mit D-förmiger Skala "M-funk. 1121 V" verwendet z.B. im Wellenmesser K.W. 59.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Author
- Model page created by Nikolaus Löwe. See "Data change" for further contributors.
