• Country
• France

• Manufacturer / Brand
• GMR (G.M.R.), Georg, Montastier et Rouge; Montrouge, Paris

• Year
• 1950–1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71679

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 GZ40

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 cm = 4.9 inch

• Material
• Bakelite case

• from Radiomuseum.org

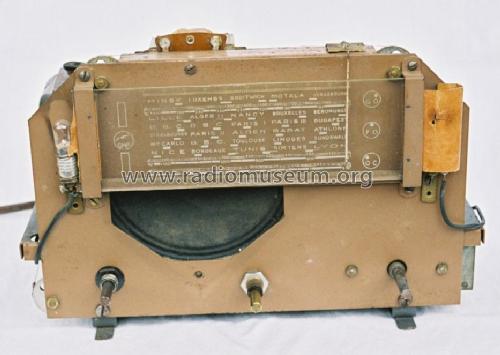

• Model: Fox - GMR G.M.R., Georg, Montastier

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 195 x 160 mm / 10.6 x 7.7 x 6.3 inch

• Notes

• 3 gammes d'ondes PO, GO et OC.

• Author
• Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.

• Other Models

• Here you find 130 models, 103 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from GMR (G.M.R.), Georg, Montastier et Rouge; Montrouge, Paris
