• Country
• France

• Manufacturer / Brand
• Gody, Abel; Amboise (Indre-et-Loire)

• Year
• 1938 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 303015

• Number of Tubes
• 4

• Valves / Tubes
• 6A8G 6F7 EL3 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 419 - Gody, Abel; Amboise Indre-et-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 250 x 210 mm / 15.7 x 9.8 x 8.3 inch

• Notes

• 2 gammes d'ondes : PO de 190 à 570 m, GO de 750 à 2000 m. Antifading.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Mentioned in

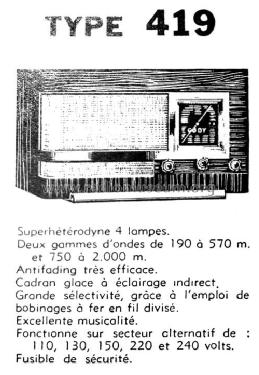

• -- Original prospect or advert

• Other Models

• Here you find 190 models, 147 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
