Chambord
Gody, Abel; Amboise (Indre-et-Loire)
- Country
- France
- Manufacturer / Brand
- Gody, Abel; Amboise (Indre-et-Loire)
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321430

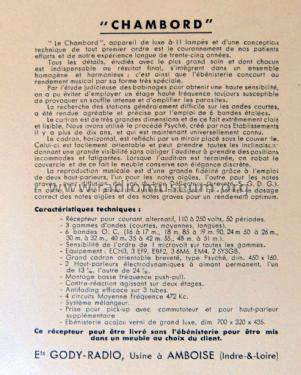

feuille Gody
feuille verso
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chambord - Gody, Abel; Amboise Indre-et-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 700 x 435 x 320 mm / 27.6 x 17.1 x 12.6 inch
- Notes
-
9 gammes d'ondes dont 6 bande étalées (BE) sur 16, 19, 25, 31, 41 et 51 m. Étage HF accordée. Contre-réaction BF. 2 HPs à aimant permanent : un de 25 cm, un de 13 cm.
Ébénisterie acajou verni.
Ce récepteur peut être livré comme châssis seul.
- Price in first year of sale
- 59,650.00 FRF
- Mentioned in
- -- Original prospect or advert (feuille de la serie des Chateaux)
- Literature/Schematics (1)
- - - Manufacturers Literature (Tarif 26.04.1948)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
