• Country
• Austria

• Manufacturer / Brand
• Goerz Electro Ges.m.b.H., Wien

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 276141

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / AC/DC 5,5 - 6,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

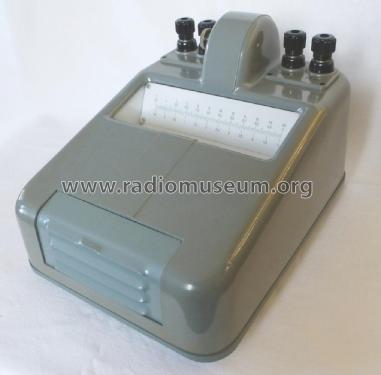

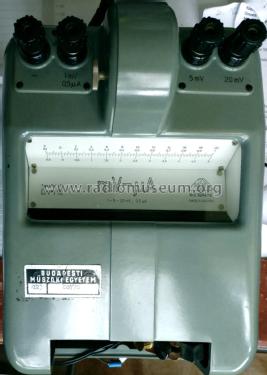

• Model: Millivolt-Mikroamperemeter mit Lichtmarkenablesung 167320 - Goerz Electro Ges.m.b.H., Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 170 x 145 x 226 mm / 6.7 x 5.7 x 8.9 inch

• Notes

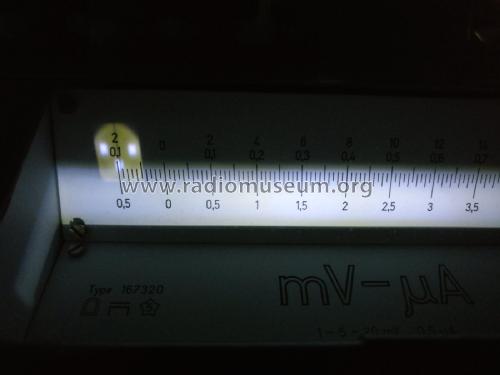

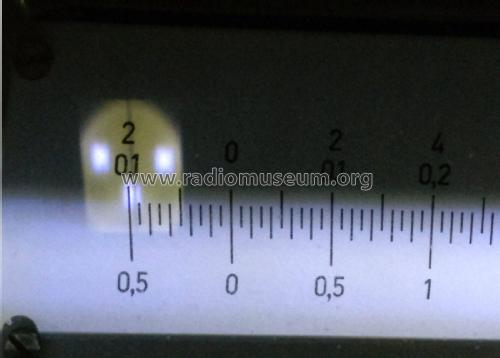

• 0-1-5-20 mV / 0,5 µA.

• Net weight (2.2 lb = 1 kg)
• 2.666 kg / 5 lb 14 oz (5.872 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Kalcher. See "Data change" for further contributors.
