• Country
• Austria

• Manufacturer / Brand
• Goerz Electro Ges.m.b.H., Wien

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 298900

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100 - 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Multiscript 2 Type 226252 - Goerz Electro Ges.m.b.H., Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 117 x 90 x 245 mm / 4.6 x 3.5 x 9.6 inch

• Notes

• Universal measuring instrument with recorder. The recorder prints the measured value to paper every 2 seconds. The paper is white but the printed value turns black due to the carbon underneath the white top layer. Adjustable paper speed: 20, 60 or 240 mm/h. Paper width: 59 mm.

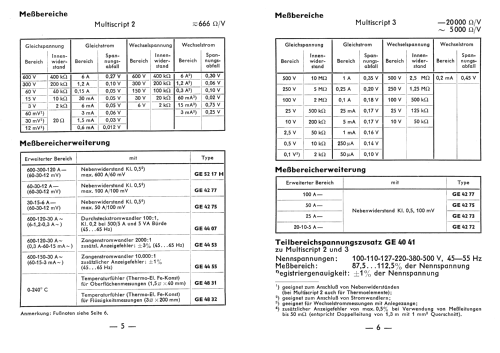

  The instrument has 27 measuring ranges. Current DC: 0,6 mA to 6 A, Current AC: 1,5 mA to 6 A. Voltage DC: 3 V to 600 V, Voltage AC: 6 V to 600 V. The AC frequency band is 15 to 20000 Hz.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Author
• Model page created by Morten Avlund. See "Data change" for further contributors.
