• Country
• Austria

• Manufacturer / Brand
• Goerz Electro Ges.m.b.H., Wien

• Year
• 1963

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 98506

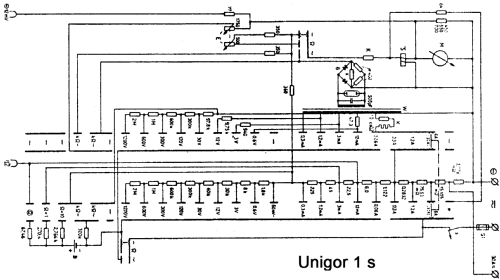

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Unigor 1s Type 226211 - Goerz Electro Ges.m.b.H., Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 108 x 85 x 210 mm / 4.3 x 3.3 x 8.3 inch

• Notes
• Vielfachmessinstrument.
  Messbereich V DC 12 mV bis 1200 V.
  Messbereich V AC 0,6 V bis 1200 V.
  Messbereich A AC/DC: 0,3 mA bis 30 A.
  Im Ohmbereich sind 5 Messbereiche möglich.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 365.00 DM

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
