Dual Trace Oscilloscope OS-300 20MHz

Gould Advance Ltd.; Hainault

  • Année
  • 1982 ?
  • Catégorie
  • Appareils de mesure et de dépannage (matériel de labo)
  • Radiomuseum.org ID
  • 333488

 Spécifications techniques

  • No. de tubes
  • 1
  • No. de transistors
  • Semi-conducteurs présents
  • Semi-conducteurs
  • Gammes d'ondes
  • - sans
  • Tension / type courant
  • Alimentation Courant Alternatif (CA) / 100; 120; 220; 240 Volt
  • Haut-parleur
  • - - Pas de sortie basse fréquence
  • Matière
  • Boitier métallique
  • De Radiomuseum.org
  • Modèle: Dual Trace Oscilloscope OS-300 [20MHz] - Gould Advance Ltd.; Hainault
  • Forme
  • Modèle de table générique
  • Dimensions (LHP)
  • 305 x 140 x 460 mm / 12 x 5.5 x 18.1 inch
  • Remarques
  • A portable general purpose dual trace oscilloscope with a full 8 x 10cm rectangular tube providing a bright display against the calibration graticule. It features two identical input channels with a maximum sensitivity of 2mV/cm and a bandwidth from D.C. to 20MHz. These channels may be displayed separately or together in dual trace mode. Alternatively they can be added or subtracted for sum or difference display. The timebase ranges from 0.2s/cm to 0.5µs/cm and a x10 expansion facility extends this to 50ns/cm. Independent variable sensitivity and sweep rate controls are provided. Particular attention has been paid to trigger performance, with D.C. and A.C. coupling available and a bright-line free-run facility to enable trace location in the absence of trigger. An active T.V. synch separator is provided for those working with video waveforms. The OS300 includes many facilities such as a 1kHz calibrator, a D.C. coupled Z modulation input and a trace rotation control.

    ACCESSORIES SUPPLIED
    Manual
    Mains lead
    OPTIONAL ACCESSORIES
    Probe Kit PB12
       A passive probe kit with switched X1 and X10 attenuations. X10 attenuation input
       impedance is 10MΩ/11.5pF.
    Probe Kit PB13
       A X10 passive probe with 1.5m of cable. Input impedance 10MΩ/11.5pF.
    Viewing Hood
    Trolley
    Protective Carrying Case
       A strong case which completely encloses the oscilloscope with 3 thicknesses of
       padding covering the front panel.
    Tube Option
       Long persistence Mullard 56825GM CRT P7 phosphor.
    Rack Mount Kit
    Front Cover

  • Poids net
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Littérature
  • - - Manufacturers Literature
  • Schémathèque (1)

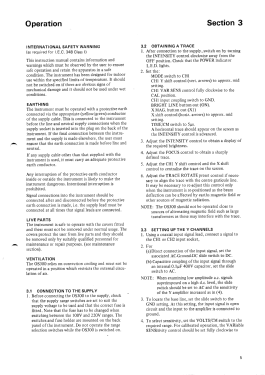

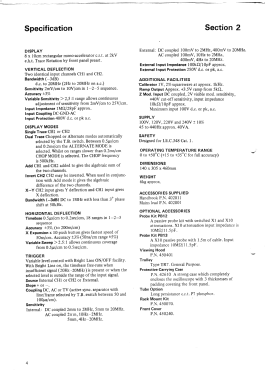

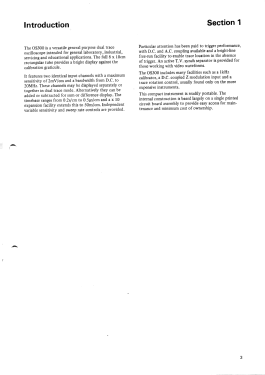

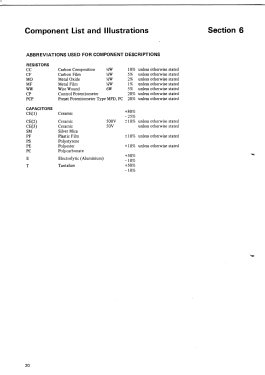

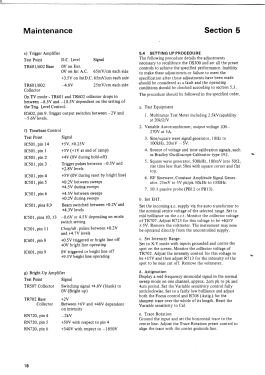

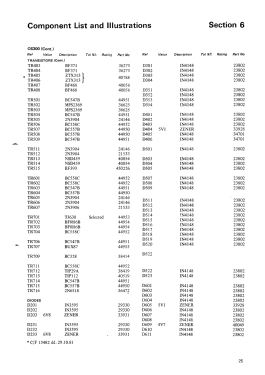

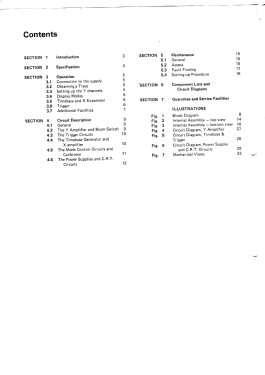

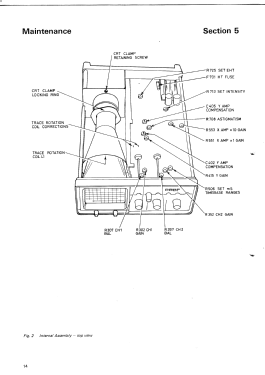

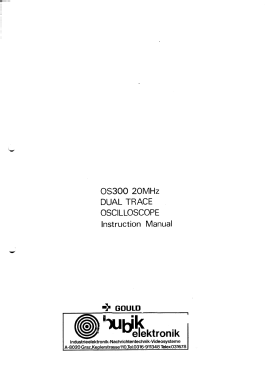

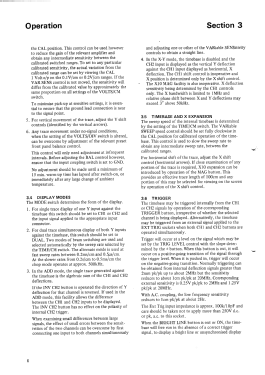

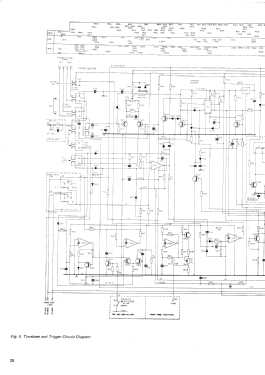

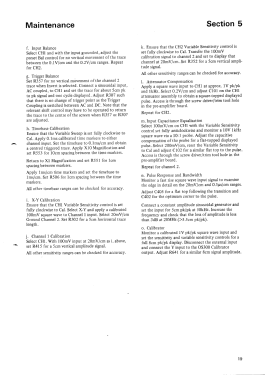

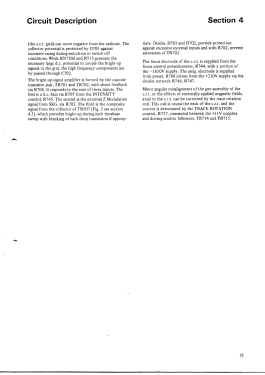

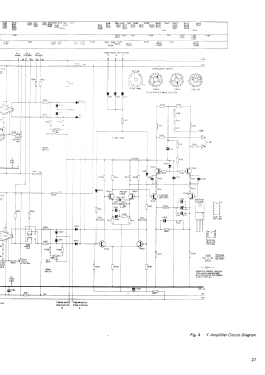

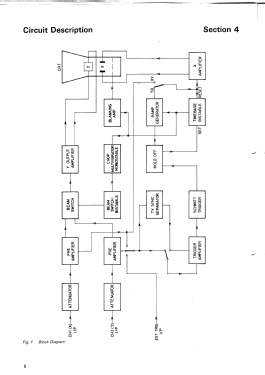

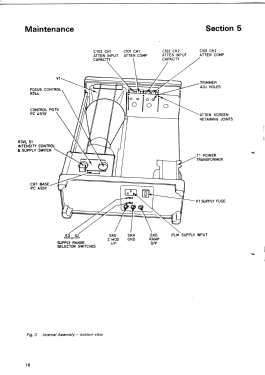

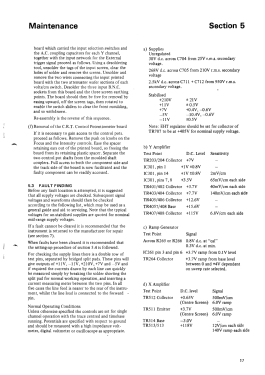

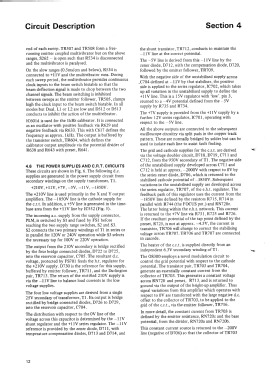

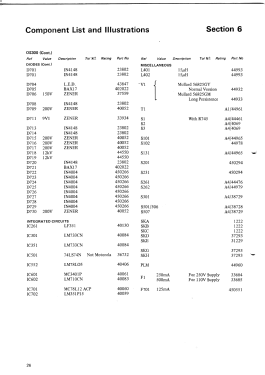

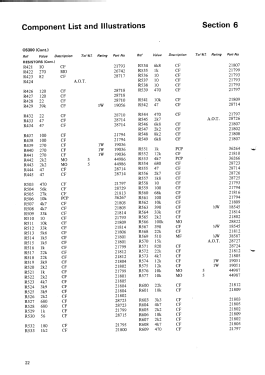

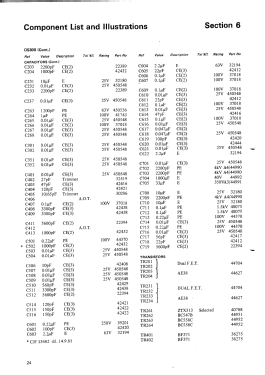

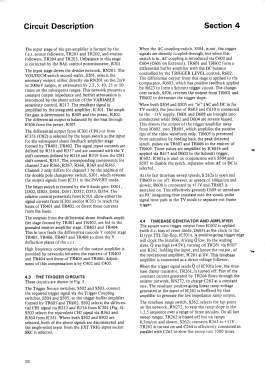

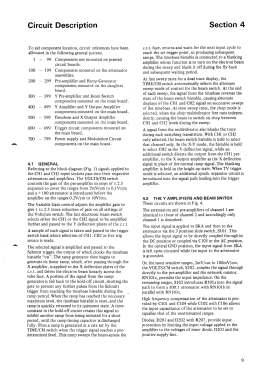

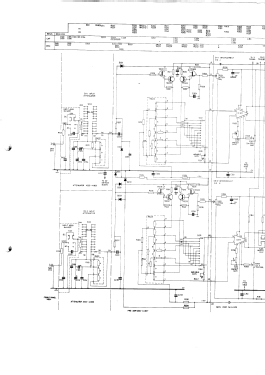

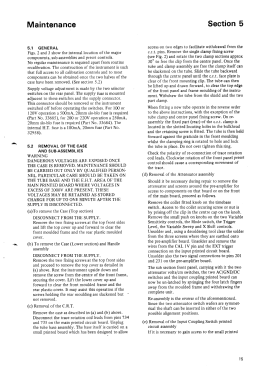

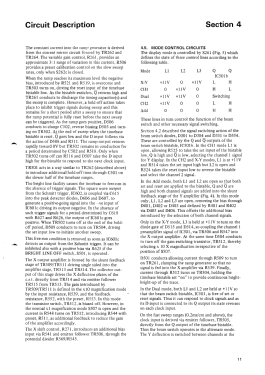

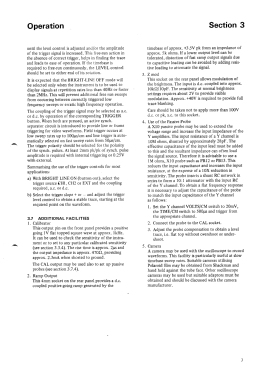

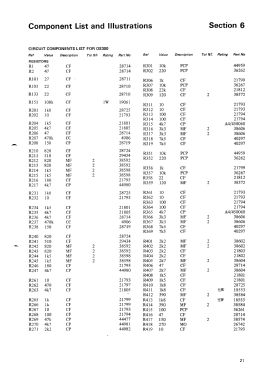

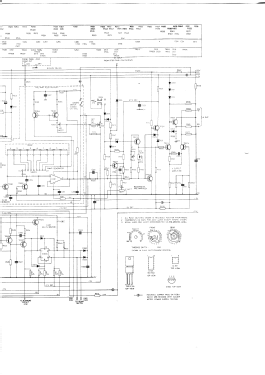

  • - - Manufacturers Literature (Operating & Service manual OS-300 dated 1982)
  • Auteur
  • Modèle crée par David Marchesi. Voir les propositions de modification pour les contributeurs supplémentaires.
