• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1966–1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 26789

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage

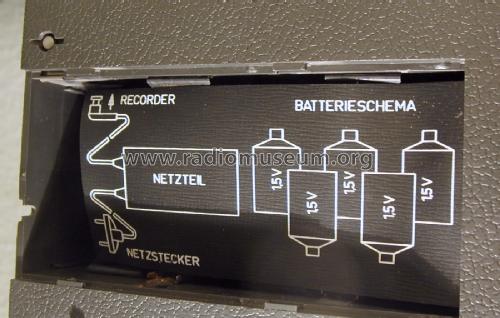

• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

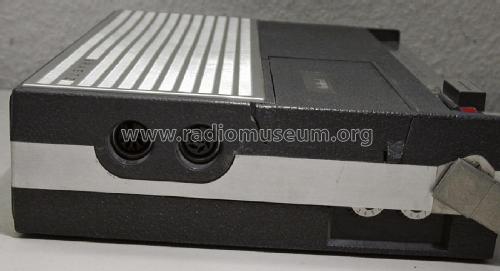

• Model: Recorder 55 - Graetz, Altena Westfalen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 203 x 63 mm / 11.4 x 8 x 2.5 inch

• Notes
• Transistoren: 3× AC125, AC126, 2× AC128, AC125, AC127, AC128; Dioden: 2× BA114.
  Mono-Cassetten-Tonbandgerät; Frequenzbereich 100···7000 Hz. Netzbetrieb mit zusätzlichem Netzgerät möglich.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 2,290.00 ATS

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
