- Country
- France
- Manufacturer / Brand
- Graetz France; Boulogne-sur-Seine
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284497
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 1 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

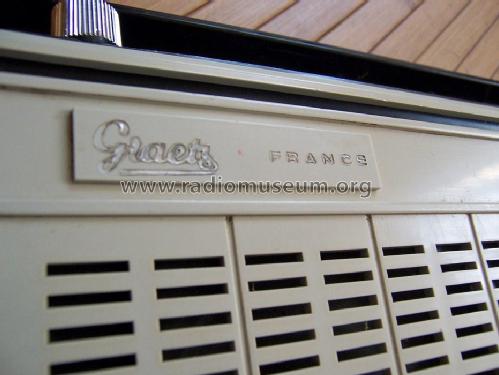

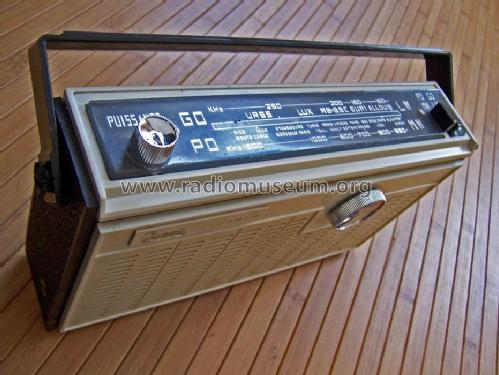

- Model: T150 - Graetz France; Boulogne-sur-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 248 x 140 x 60 inch / 6299 x 3556 x 1524 mm
- Notes
-
Voir aussi modèle Océanic T150.
- Author
- Model page created by Daniel Jecker. See "Data change" for further contributors.
