- Country
- France
- Manufacturer / Brand
- Grammont (Radiofotos, Fotos); Paris, Malakoff
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84029
-
- alternative name: Radiofotos || Société des lampes Fotos
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 140; 150; 220; 230; 240; 250; 260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

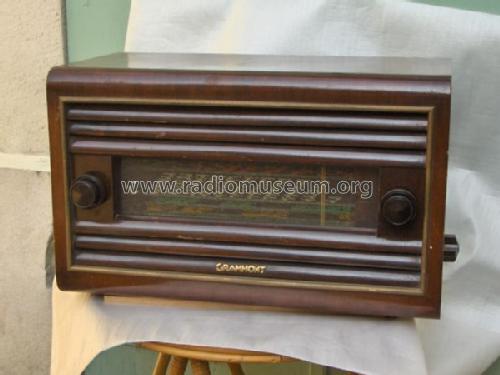

- Model: 4616 - Grammont Radiofotos, Fotos;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 330 x 270 mm / 20.5 x 13 x 10.6 inch
- Notes
-
4 gammes d'ondes : OTC (ondes trè courtes) de 16 à 29 m, OC de 28 à 51 m, PO de 190 à 560 m, GO de 900 à 1900 m. Réglage d'accord à 2 vitesses. Réglage 1er transfo FI = 472 kHz, 2ème = 469 kHz
Ébénisterie en noyer verni.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
