- Country
- France
- Manufacturer / Brand
- Grammont (Radiofotos, Fotos); Paris, Malakoff
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68467
-
- alternative name: Radiofotos || Société des lampes Fotos
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- from Radiomuseum.org

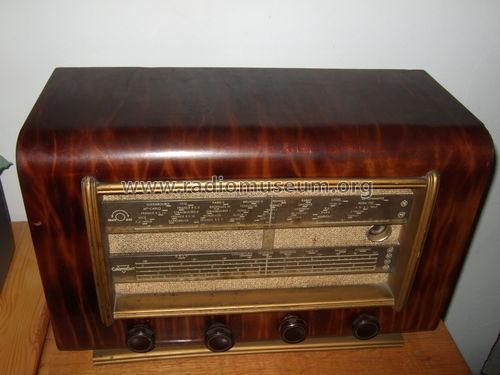

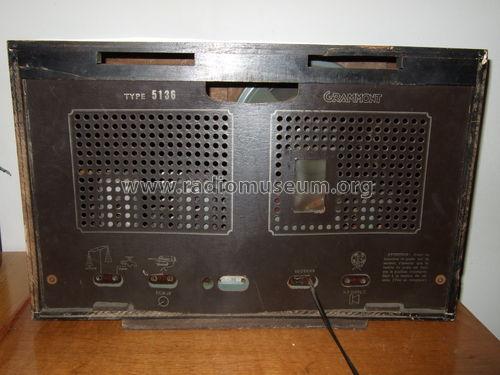

- Model: 5136 - Grammont Radiofotos, Fotos;
- Dimensions (WHD)
- 510 x 330 x 220 mm / 20.1 x 13 x 8.7 inch
- Notes
- 3 OC dont 2 bande étalées.
- Price in first year of sale
- 25,950.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur 1951
