- Country
- France
- Manufacturer / Brand
- Grammont (Radiofotos, Fotos); Paris, Malakoff
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125117
-
- alternative name: Radiofotos || Société des lampes Fotos

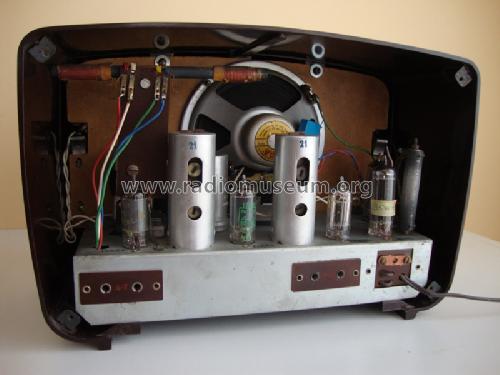

Câblage près remise en état.
Le cadran.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 5415 - Grammont Radiofotos, Fotos;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 190 x 0 mm / 11.4 x 7.5 x 0 inch
- Mentioned in
- Le grand Livre (3), Bourque 2002
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
