• Country
• France

• Manufacturer / Brand
• Grammont (Radiofotos, Fotos); Paris, Malakoff

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70967

• • alternative name: Radiofotos || Société des lampes Fotos

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AJ8 6BA6 6AV6 6BQ5 EM85 6BX4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5726 - Grammont Radiofotos, Fotos;

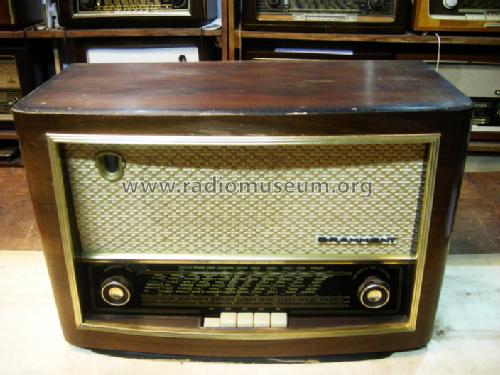

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 350 x 240 mm / 19.7 x 13.8 x 9.4 inch

• Notes

• 4 gammes d'ondes dont 1 bande étalée. Cadre à air blindé incorporé orientable. Clavier 5 touches.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Schémathèque Éditions Radio (SER) (No. 976)

• Literature/Schematics (2)
• -- Original prospect or advert

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
